This tank can be used as a Chemical Storage Tank, Fertilizer Storage Tank or Water Storage Tank.
This is an INSULATED tank. It is covered with 2" of closed cell Polyurethane foam insulation. The insulation is covered with a White mastic sealant. Heat tracing can be optionally added as well as a variety of fittings.
Vertical tanks are efficient containers for bulk liquid storage. They provide the lowest cost per gallon stored of all tank shapes. This 6,500 gallon tank is made from High Density Linear Polyethylene. Of the several available plastics used for poly tanks, polyethylene i
-- This tank has a Diameter of 124" and Height of 149".

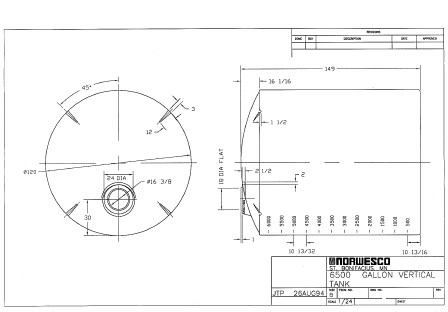

Click Drawing for full size view.
-- Tank Capacity: 6500 Gallons.
-- Molded from FDA approved High Density Polyethylene (HDPE). -- Complies with FDA standards 21 CFR 177.1520 (1) 3.1 and 3.2. -- HDPE has a maximum continuous use temperature of 130 F. -- This HDPE tank is approved for potable water.
-- Meets ASTM D 1998-06 Standard Specification for Polyethylene Upright Storage Tanks.
-- WHITE in color.
-- Type of tank: SINGLE WALL.
-- Item number: IVTN06500-124-1.5.
-- Tank Manufacturer: NORWESCO
-- Tank Warranty: Limited 3 year warranty
-- This is an above ground tank. It is rated for atmospheric pressure only.
